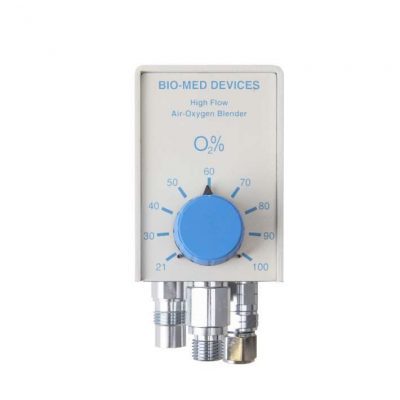

2001 and 2001M Blenders (MRI)

The 2001 and 2001M (the 2001M being the MRI Conditional version for use in the MRI Suite) provide higher flow capabilities (up to 120 lpm) than the Low Flow Blenders (30 lpm). In general, this model would be well suited for providing a blended flow to equipment that uses higher than 30 lpm flows. It features a bottom 50 psi DISS port for making this connection. The right side port is most often used to install a 0-15 lpm flow meter. Just be aware that using the right side port activates the 12 lpm bleed flow. If the primary purpose of this blender is for use with a 0-15 lpm flow meter, it might be better to look into a Low Flow model.

Dimensions & Weight
Height 5.3″ (13.5 cm)
Width 3.53″ (9.0 cm)
Depth 4.56″ (11.6 cm)
Weight 2.38 lbs. (1.08 kg)

Ordering Information

2001M     MRI Conditional

Please use the form at the bottom of the page to enquire about wholesale or bulk pricing.
