TV-100 Transport Ventilator
Unmatched Capability
The TV-100 offers the capability to ventilate the smallest of premature infants to the largest of adult patients. This wide range of use, as well as the inclusion of non-invasive modes, sets the TV-100 apart.
Please use the form at the bottom of the page to enquire about wholesale or bulk pricing.

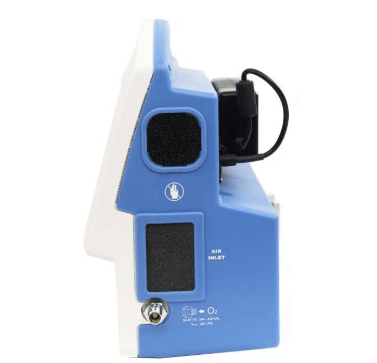

The TV-100 features an internal compressor which provides air supply without the need for external pressurized gas supplies. Oxygen may also be provided from a 50 psi gas source and is delivered via an internal blender in O2 concentrations from 21 – 100%.
Dependable & Easy to Use

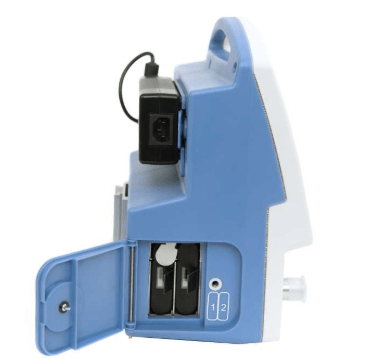

The TV-100 features dual, hot swap capable, rechargeable batteries that allow for uninterrupted use on the go. The TV-100 is capable of up to 7 hours of continuous battery operation with fully charged batteries.
The TV-100 offers the user a simple setup assistant to get up and running fast, when seconds count. The user can also take full advantage of advanced features like waveform graphs and loop graphs to provide complete patient care.
Unmatched Capability
The TV-100 offers the capability to ventilate the smallest of premature infants to the largest of adult patients. This wide range of use, as well as the inclusion of non-invasive modes, sets the TV-100 apart.
Ventilation Modes
Apnea
Assist Control-Pressure
Assist Control-Volume
CPAP-Pressure Backup
CPAP-Volume Backup
NIV Bi-Level
SIMV-Pressure
SIMV-Volume
| Height | 12.8″ (32.5 cm) | |
|---|---|---|
| Width | 11.9″ (30.2 cm) or 13.5″ (34.3 cm) with optional mounted blender | |
| Depth | 7.6″ (19.3 cm) | |
| Weight | 15.6 lbs. (7.1 kg) | |
Ordering Information
Model 5500
OPT1 Neonatal Only
OPT2 Pediatric-Adult
OPT3 Neonatal-Pediatric-Adult
| Apnea Alarm | 10 – 60 seconds |
|---|---|
| I:E Ratio | 3:1 to 1:99 |
| Oxygen | 21-100% |
| Pressure Support | 1 – 60 cmH2O |
| Rate (Pediatric/Adult) | 5-100 bpm |
| Rate (Neonatal) | 5-150 bpm |
| SIMV Rate | 0.6 – 50 bpm |
| Expiratory Time | 0.2 – 99.9 seconds |
| Inspiratory Time | 0.1 – 3.0 seconds |
| Flow Trigger | 0.5 – 30 lpm |
| Pressure Trigger | -0.2 to -10 cmH2O |
| Base Flow (Pediatric/Adult) | 6 lpm |
| Base Flow (Neonatal) | 2.5 lpm |
| Flow (Pediatric/Adult) | 0.1 – 180 lpm |
| Flow (Neonatal) | 0.1 – 15 lpm |
| PEEP/CPAP (Pediatric/Adult) | 0 – 35 cmH2O |
| PEEP (Neonatal) | 0 – 25 cmH2O |
| EPAP | 2- 20 cmH2O |
| IPAP | 3 – 40 cmH2O |
| PIP (Pediatric/Adult) | 0 – 59 cmH2O |
