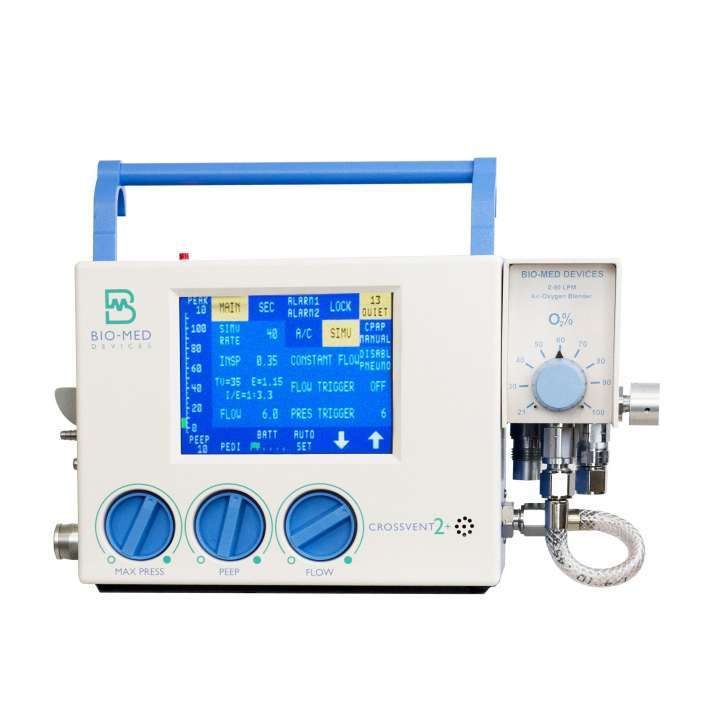

Crossvent 2+ Infant-Pediatric Ventilator

Crossvent 2+ Infant-Pediatric Ventilator

Bio-Med Devices’ new industry-leading Crossvent 2+ Ventilator offers wide range of ventilator support for both pediatric and infant patients in a variety of settings from air and ground transport to emergency department to ICU to sub-acute care and more.

Please use the form at the bottom of the page to enquire about wholesale or bulk pricing.

Category:

Description

Features

Key features include:
  • Ultra-compact and lightweight design
  • Unmatched gas efficiency
  • Long battery life
  • Multiple ventilation modes
  • Flow Trigger
  • Built-in PEEP
  • LED power indicator
  • Foolproof circuit connections
Highlights of enhancements:
  • Color display with greater visibility and viewing angle
  • Improved touchscreen sensitivity
  • Improved battery gauge providing greater accuracy in 2% increment
Ideal for:
  • Air and ground transport
  • Intra or inter-hospital transport
  • Intensive Care Unit
  • Emergency Department
  • Recovery Room
  • Subacute Care



Ventilation Modes

Assist Control
SIMV
CPAP
Pressure Support
Constant Flow
Flow Trigger


Dimensions & Weight
Height10 inches (2.4 cm)
Width11 inches (28.0 cm) or 13.5 (34.3 cm) with optional mounted blender
Depth5.5 inches (14cm)
Weight10.5 lbs (4.8 kg) or 13.5 with optional mounted blender


Ordering Information


Models:
2200EC     Crossvent 2+ with Exhaled Tidal Volume Monitoring
2200BEC   Crossvent 2+ with Exhaled Tidal Volume Monitoring and attached Air/Oxygen Blender


Specifications
Rate5-150 bpm
Tidal Volume5-990ml
Inspiratory Time0.10 – 3.0 seconds
Flow Rate1-50 lpm
Peak Pressure0-80 cmH2O
PEEP Pressure0-20 cmH2O
Flow Trigger0-20 (sensitivity scale)
Pressure Trigger-.2 to -10 cmH2O
Pressure Support0-50 lpm
SIMV Rate0.6 – 50 bpm
Constant Flow0-29 lpm
O2 Sensor21-100%
I/E Ratio3:1 to 1:99
