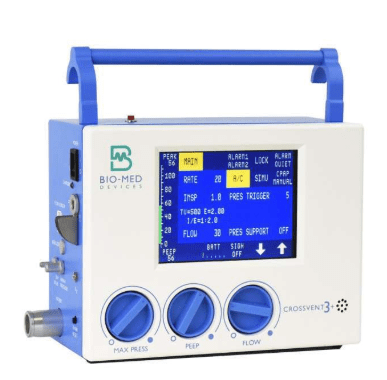

Crossvent 3+ Pediatric – Adult Ventilator

Crossvent 3+ Pediatric – Adult Ventilator



Please use the form at the bottom of the page to enquire about wholesale or bulk pricing.

Category:

Description

Features

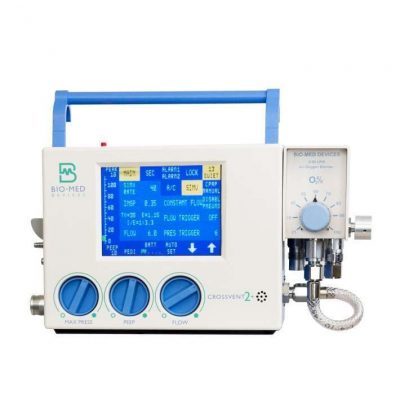

You can order the Crossvent 3+ in any one of three configurations:  Standard, with Bio-Med Devices Air/Oxygen Blender attached or with air entrainment.   The  attached blender allows the user to set oxygen concentration from 21% to 100%.  Units with air entrainment can deliver either 100% oxygen or a nominal 50% oxygen without the need for an external air supply source.  The unique venturi mechanism built into the unit increases oxygen tank life by mixing ambient air with the source oxygen.

The Crossvent 3+ can be powered by a compressor, blended gas or 100% oxygen, and its consumption of gas is extremely low.  The internal battery provides power in the event of AC power failure.  If the external power should fail, the unit will automatically switch to its battery power and sound an alarm.  A fully charged battery will last approximately 6 hours.

Available alarms include exhaled tidal volume, PIP, PEEP, mean pressure, low supply pressure, rate, oxygen concentration and low battery.

Highlights of enhancements include:
Color display with greater visibility and viewing angle
Improved touchscreen sensitivity
Improved battery gauge providing greater accuracy in 2% increments
Optional Exhaled Vt
Optional Exhaled VE

Key features include:
Ultra-compact and lightweight design
Unmatched gas efficiency
Long battery life
Multiple Ventilation modes
Built-in PEEP
LED power indicator
Foolproof circuit connections

Ideal for:
Air and ground transport
Intra or inter-hospital transport
Intensive care unit
Emergency department
Recovery room
Subacute care

Ventilation Modes

Using the color touchscreen display, operators can easily select the appropriate ventilation mode:  Assist Control, SIMV, CPAP, Pressure Support or Sigh.

Dimensions & Weight
Height10 inches (25.4 cm)
Width11 inches (28.0 cm) or 13.5 inches (34.3 cm) with optional mounted blender
Depth5.5 inches (14cm)
Weight10.5 lbs (4.8 kg) or 13.5 lbs (6.1kg) with optional mounted blender


Ordering Information

Models:
3300C       Basic Crossvent 3+
3300AC    Crossvent 3+ with Air Entrainment
3300BC    Crossvent 3+ with attached Air/Oxygen Blender
3300EC    Crossvent 3+ with Exhaled Tidal Volume Monitoring
3300AEC  Crossvent 3+ with Exhaled Tidal Volume Monitoring and Air Entrainment
3300BEC  Crossvent 3+ with Exhaled Tidal Volume Monitoring and attached Air/Oxygen Blender

All models include a Disposable Adult Circuit, OHigh Pressure Supply Hose, Oxygen Sensor Cell with Cable, Adult Test Lung, External Power Supply and Instruction/Service Manual.

Optional Accessories:
Heavy Duty Stand (includes tilt bracket), Filter Water Trap (Air), Filter Water Trap (o2), Pediatric Adult Pneumotach, Standard Pole Mount Bracket, Circuit Support Arm, Support Arm Bracket, Blender Pole Bracket, Disposable Pediatric Circuit, Reusable Adult Circuit

Options:
Blender or Air Entrainment
Exhaled Tidal Volume
Exhaled Minute Volume


Specifications
Rate5-150
Tidal Volume5-2500 ml
Inspiratory Time0.10 – 3.0 seconds
Flow Rate1-120 lpm
Peak Pressure0-120 cmH2O
PEEP Pressure0-35 cmH2O
Pressure Trigger-.2 to -10 cmH2O
Pressure Support0-50 cmH2O
SIMV Rate0.6 – 50 bpm
Sigh0-2500ml
O2 Sensor21-100%
I/E Ratio3:1 to 1:99
